CHOOSE() in SQL Server

Watch this week's video on YouTube

While I know I don't utilize most of the features available in SQL Server, I like to think I'm at least aware that those features exist.

This week I found a blind-spot in my assumption however. Even though it shipped in SQL Server 2012, the SQL Server CHOOSE function is a feature that I think I'm seeing for the first time this past week.

CHOOSE is CASE

CHOOSE returns the n-th item from a comma-delimited list.

Whenever learning a new feature in SQL Server I try to think of a good demo I could build to test out the functionality. In this case the immediate example that came to mind was building something that would provide a lookup of values:

SELECT
    [key],
    [value],
    [type],
    CHOOSE(type+1,'null','string','int','boolean','array','object') AS JsonType
FROM
    OPENJSON(N'{
        "Property1":null,
        "Property2":"a",
        "Property3":3,
        "Property4":false,
        "Property5":[1,2,"3"],
        "Property6":{
            "SubProperty1":"a"
        }
    }');

In this case, the OPENJSON function returns a "type" field that indicates the datatype of that particular JSON property's value. The issue is that the "type" column is numeric and I can never remember what type of data each number represents.

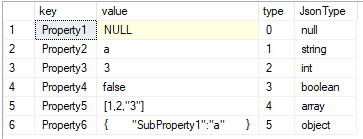

The above query solves this by using CHOOSE to create a lookup of values. Since OPENJSON returns results starting with 0, we need to use type+1 in order to get the 1-based CHOOSE function to work correctly:

2019-06-03-21-08-58

If we look at the CHOOSE function's scalar operator properties in the execution plan, we'll see that this function is just a fancy alias for a more verbose CASE statement:

[Expr1000] = Scalar Operator(
    CASE WHEN (CONVERT_IMPLICIT(int,OPENJSON_DEFAULT.[type],0)+(1))=(1)
    THEN 'null'
    ELSE
        CASE WHEN (CONVERT_IMPLICIT(int,OPENJSON_DEFAULT.[type],0)+(1))=(2)
        THEN 'string'
        ELSE
            CASE WHEN (CONVERT_IMPLICIT(int,OPENJSON_DEFAULT.[type],0)+(1))=(3)
            THEN 'int'
            ELSE
                CASE WHEN (CONVERT_IMPLICIT(int,OPENJSON_DEFAULT.[type],0)+(1))=(4)
                THEN 'boolean'
                ELSE
                    CASE WHEN (CONVERT_IMPLICIT(int,OPENJSON_DEFAULT.[type],0)+(1))=(5)
                    THEN 'array'
                    ELSE
                        CASE WHEN (CONVERT_IMPLICIT(int,OPENJSON_DEFAULT.[type],0)+(1))=(6)
                        THEN 'object'
                        ELSE NULL END
                    END
                END
            END
        END
    END
)

The Set-Based Way

I think one of the reasons I've never used CHOOSE is because I would hate typing up all of those lookup values and trapping them in a SELECT statement, never to be used again.

Previously, I would have stored the lookup values in table and joined them with the OPENJSON results to accomplish the same end result:

DROP TABLE IF EXISTS #JsonType;
CREATE TABLE #JsonType
(
    Id tinyint,
    JsonType varchar(20),
    CONSTRAINT PK_JsonTypeId PRIMARY KEY CLUSTERED (Id)
);

INSERT INTO #JsonType VALUES (0,'null');
INSERT INTO #JsonType VALUES (1,'string');
INSERT INTO #JsonType VALUES (2,'int');
INSERT INTO #JsonType VALUES (3,'boolean');
INSERT INTO #JsonType VALUES (4,'array');
INSERT INTO #JsonType VALUES (5,'object');

SELECT
    j.[key],
    j.[value],
    j.[type],
    t.JsonType
FROM
    OPENJSON(N'{
        "Property1":null,
        "Property2":"a",
        "Property3":3,
        "Property4":false,
        "Property5":[1,2,"3"],
        "Property6":{
                        "SubProperty1":"a"
                    }
    }') j
    INNER JOIN #JsonType t
        ON j.[type] = t.Id

While more initial setup is involved with this solution, it's more flexible long-term. With a centralized set of values, there's no need to update the CHOOSE function in all of your queries when you can update the values in a single lookup table.

And while I didn't bother performance testing it, by virtue of being a scalar function, CHOOSE will probably perform worse in many real-world scenarios when compared to the table-based lookup approach (eg. large datasets, parallel plans, etc...).

CHOOSE What Works For You

I'm not surprised that it took me this long to learn about the CHOOSE function: while a simplified way to write certain CASE statements, I can't think of many (any?) scenarios where I would prefer to use it over a CASE or a lookup-table solution.

12 Ways To Rewrite SQL Queries for Better Performance

Watch this week's video on YouTube

Over the past several week's I've been exploring ways to rewrite queries to improve execution performance.

I learned a lot of these techniques over time from trial an error, attending presentations, reading blog posts, speaking to other dbas and developers, etc... but never knew of a good resource that summarized these techniques in one place.

This post will be a quick round-up of everything I've covered so far, as well as 8 additional techniques that I use occasionally but don't necessarily require a full detailed post to explain them.

Why Rewrite Queries?

I often find myself working in environments where modifying indexes or changing server settings is out of the question when performance tuning. I usually run into these scenarios when dealing with:

  • Vendor databases
  • "Fragile" systems
  • Not enough disk space
  • Limited tooling/ad hoc analysis
  • Features limited by security software

While solving the root cause of a performance problem is always preferable, sometimes the only way I'm able to fix problems in these environments is by rewriting the queries.

I decided to write this summary post because it is a resource I would have loved to have when starting out. Sometimes it can be easy to get "writer's block" when trying to think of ways to rewrite a SQL query, so hopefully this list of techniques can provide ideas and get your creative juices flowing.

So, without further ado, here is a list of 12 techniques in no particular order that you can use to rewrite your queries to change their performance.

12 Ways to Refactor a Query to Change Performance

1. Window functions vs GROUP BY

Sometimes window functions rely a little too much on tempdb and blocking operators to accomplish what you ask of them. While using them is always my first choice because of their simple syntax, if they perform poorly you can usually rewrite them as an old-fashioned GROUP BY to achieve better performance.

2. Correlated subqueries vs derived tables

Many people like using correlated subqueries because the logic is often easy to understand, however switching to derived table queries often produces better performance due to their set-based nature.

3. IN vs UNION ALL

When filtering rows of data on multiple values in tables with skewed distributions and non-covering indexes, writing your logic into multiple statements joined with UNION ALLs can sometimes generate more efficient execution plans than just using IN or ORs.

4. Temporary Staging Tables

Sometimes the query optimizer struggles to generate an efficient execution plan for complex queries. Breaking a complex query into multiple steps that utilize temporary staging tables can provide SQL Server with more information about your data. They also cause you to write simpler queries which can cause the optimizer to generate more efficient execution plans as well as allow it to reuse result sets more easily.

5. Forcing Table Join Orders

Sometimes outdated statistics and other insufficient information can cause the SQL Server query optimizer to join tables in a less than ideal sequence. Adam Machanic has a fantastic presentation on forcing table join order with blocking operators without having to resort to join hints.

6. DISTINCT with few unique values

Using the DISTINCT operator is not always the fastest way to return the unique values in a dataset. In particular, Paul White uses recursive CTEs to return distinct values on large datasets with relatively few unique values. This is a great example of solving a problem using a very creative solution.

7. Eliminate UDFs

UDFs often cause poor query performance due to forcing serial plans and causing inaccurate estimates. One way to possibly improve the performance of queries that call UDFs is to try and inline the UDF logic directly into the main query. With SQL Server 2019 this will be something that happens automatically in a lot of cases, but as Brent Ozar points out you might occasionally have to manually inline a UDF's functionality to get the best performance.

8. Create UDFs

Sometimes a poorly configured server will parallelize queries too frequently and cause poorer performance than their serially equivalent plan. In those cases, putting the troublesome query logic into a scalar or multi-statement table-valued function might improve performance since they will force that part of the plan to run serially. Definitely not a best practice, but it is one way to force serial plans when you can't change the cost threshold for parallelism.

9. Data Compression

Not only does data compression save space, but on certain workloads it can actually improve performance. Since compressed data can be stored in fewer pages, read disk speeds are improved, but maybe more importantly the compressed data allows more to be stored in SQL Server's buffer pool, increasing the potential for SQL Server to reuse data already in memory.

10. Indexed Views

When you can't add new indexes to existing tables, you might be able to get away with creating a view on those tables and indexing the view instead. This works great for vendor databases where you can't touch any of the existing objects.

11. Switch cardinality estimators

The newer cardinality estimator introduced in SQL Server 2014 improves the performance of many queries. However, in some specific cases it can make queries perform more slowly. In those cases, a simple query hint is all you need to force SQL Server to change back to the legacy cardinality estimator.

12. Copy the data

If you can't get better performance by rewriting a query, you can always copy the data you need to a new table in a location where you CAN create indexes and do whatever other helpful transformations you need to do ahead of time.

...And more

By no means is this list exhaustive. There are so many ways to rewrite queries, and not all of them will work all the time.

The key is to think about what the query optimizer knows about your data and why it's choosing the plan it is. Once you understand what it's doing, you can start getting creative with various query rewrites that address that issue.

Predicate Execution Order on Mixed Data Type Columns

Watch this week's video on YouTube

SQL Server's cost-based query optimizer does a pretty good job of figuring out what order to filter your data to get fast query executions. It considers things like index coverage, data distribution, and much more to decide how to retrieve your query's data.

However, these good intentions can become problematic in certain situations where you know more about your data than SQL Server does. When this happens, the order SQL Server chooses to execute predicates is important not just for performance of your query but for the business logic as well.

A Column With Mixed Data Types

Let's look at the following example table and data:

USE master;
DROP DATABASE IF EXISTS MixedDataTypes;
CREATE DATABASE MixedDatatypes;
USE MixedDatatypes;
GO

CREATE TABLE dbo.Pages
(
    Id int identity,
    PageName varchar(20),
    DataValue varchar(100),
    DataType varchar(20),
    CONSTRAINT PK_Id PRIMARY KEY (Id)
);
GO
INSERT INTO dbo.Pages VALUES ('StringsOnlyPage 1','abc','string')
GO 2000
INSERT INTO dbo.Pages VALUES ('NumbersOnlyPage 1','1.20','decimal')
GO 2000
INSERT INTO dbo.Pages VALUES ('NumbersOnlyPage 2','1.20','decimal')
GO 2000
INSERT INTO dbo.Pages VALUES ('MixedDataTypesPage 1','abc','string')
GO 1000
INSERT INTO dbo.Pages VALUES ('MixedDataTypesPage 1','1.20','decimal')
GO 1000

This table stores data for an application that has many different types of Pages. Each Page stores different types of data, but instead of creating a separate table for each type, we store all the different data in the varchar DataValue column and maintain the original data type in the DataType column.

This structure reduces the complexity required for maintaining our database (compared to creating possibly hundreds of tables, one for each PageName) and makes querying easier (only need to query one table). However, this design could also lead to some unexpected query results.

Filtering Mixed Data Values

Let's say we want to retrieve all data from one table with where the value is 1.2:

SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName = 'NumbersOnlyPage 1' AND DataValue = '1.2'

This query runs fine. The problem is since our original data type was a decimal with a value of 1.20, this string-based comparison doesn't work. What we really want to have happen is a numeric comparison in our predicate:

SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName = 'NumbersOnlyPage 1' AND DataValue = 1.2

2019-05-20-20-34-01

While the implicit conversion occurring on the table's DataValue column is not ideal, if the number of rows it needs to convert is small it's not so bad (plus, this isn't the point of today's post, so try and look past it for a few more moments).

Here comes the fun: what if we want to check all our Pages that contain numeric data for values of 1.2? We could write this query in a couple of different ways:

SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName like 'NumbersOnlyPage%' AND DataValue = 1.2
--or
SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName in ('NumbersOnlyPage 1','NumbersOnlyPage 2') AND DataValue = 1.2

For both queries, we receive the error "Error converting data type varchar to numeric".

2019-05-20-20-34-40

Why? In this case SQL Server decides to do the implicit conversions on the DataValue column first before filtering on our PageName columns.

Up until this last query, SQL Server was deciding that it would be more efficient to filter the rows down to the specific Page first and then do the implicit conversions on the DataValue column. However, now that we are selecting more than one table, SQL Server says determines it has to scan everything anyway, it might as well do all of the implicit conversions first and filter on table names later.

The problem of course is that all our DataValue values are not numeric. In this case the order of the predicates does matter, not for performance but to be able to correctly execute the business logic that we defined as part of our query.

Not Good Solutions

One way we can fix this is to tempt SQL Server to filter on PageName first by adding an index:

CREATE NONCLUSTERED INDEX IX_PageName ON dbo.Pages (PageName) INCLUDE (DataValue);

SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName like 'NumbersOnlyPage%' AND DataValue = 1.2

This works great. SQL Server decides that since this index covers all the fields in our query, and because the index key is PageName, it will filter the rows on PageName first and perform the implicit conversions on the remaining rows.

The problem with this is that it's not guaranteed. Something may happen that will cause SQL Server not use this index in the future: our index doesn't cover our query anymore, we add some additional filtering, the index is removed so it can be replaced by a different index that will no longer be selected for this particular query, etc...

It just isn't a reliable option.

Plus it doesn't work in all scenarios. Let's say we parameterize the PageName and use the STRING_SPLIT() function to filter our Pages to only those passed in:

DECLARE @PageNames varchar(100) = 'NumbersOnlyPage 1,NumbersOnlyPage 2';
SELECT *
FROM dbo.Pages
WHERE PageName in (SELECT value FROM string_split(@PageNames,',')) AND DataValue = 1.2

We are back to square one since in this case STRING_SPLIT() needs to parse the PageName data first and then join it in with the rest of the data, causing our original failure scenario (this is the estimated execution plan):

2019-05-20-20-36-08

Other Options

So while indexing seems to fix the solution, it's not guaranteed to work 100% of the time.

Obviously we could not store data in this format, but that would add complexity to the database and app.

We could try to add the PageName filter into a derived table and force the join order, but that's ugly and will force us to read the table multiple times.

Since we also have data type information available for each row, we might consider utilizing that information:

SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName like 'NumbersOnlyPage%' AND DataValue = 1.2 AND DataType = 'decimal'

But once again if this works it's through sheer luck.

TRY_CONVERT() is another option. This function returns nulls if it can't convert to a decimal:

SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName like 'NumbersOnlyPage%' AND TRY_CONVERT(decimal(2,1),DataValue) = 1.2

This is actually a pretty good option since it's guaranteed to work regardless of which column SQL Server filters on first. If the number of DataValues you have to TRY and CONVERT is relatively small though, this may be your best choice.

For better performance, you can create a second column that contains data in decimal (or any other type) format:

ALTER TABLE dbo.Pages
ADD DataValueDecimal AS TRY_CONVERT(decimal(2,1),DataValue) PERSISTED

You could index both DataValue* columns and your performance would be pretty good. The downside here of course is that your app queries will have to change to match the new table structure:

SELECT PageName,DataValue
FROM dbo.Pages
WHERE PageName like 'NumbersOnlyPage%' AND CASE WHEN DataType = 'decimal' THEN DataValueDecimal ELSE DataValue END = 1.2

In conclusion, it's tough to say what the best option is for this type of scenario. However, it's important to keep in mind that if you decide to structure and write your queries in this format, you need to plan for order of operation issues and handle errors gracefully.

Animating a Magic 8 Ball in SQL Server Management Studio

MJ-t-sql-Tuesday

This post is a response to this month's T-SQL Tuesday #114 prompt by Matthew McGiffen.  T-SQL Tuesday is a way for the SQL Server community to share ideas about different database and professional topics every month. This month Matthew asks us to write about puzzles, so I decided to recreate a childhood favorite in SQL Server.


Watch this week's video on YouTube

As a kid, I found Magic 8 Balls alluring. There is something appealing about a who-knows-how-many-sides die emerging from the depths of a mysterious inky blue fluid to help answers life's most difficult questions.

I never ended up buying a magic eight ball of my own though, so today I'm going to build and animate one in SQL Server Management Studio.

Fun and Valuable? Signs point to yes.

While building a magic eight ball in SQL Server is not the most useful project in the world it is:

  1. Fun
  2. A great way to learn lots of cool SSMS and SQL tips and tricks to use in more useful situations.

Here's an example of the finished project followed by all of the components that make this project work. The full code for this solution can be found at the bottom of this post.

SSMSMagic8Ball

VALUES()

I needed a way to store all of the Magic 8 Ball messages. Some days I like UNIONing together a bunch of SELECT statements, but for these "larger" static datasets I like the syntax of VALUES().

SELECT * FROM
(VALUES
    ('It is certain.'),
    ('It is decidedly so.'),
    ('Without a doubt.'),
    ('Yes - definitely.'),
    ('You may rely on it.'),
    ('As I see it, yes.'),
    ('Most likely.'),
    ('Outlook good.'),
    ('Yes.'),
    ('Signs point to yes.'),

    ('Reply hazy, try again.'),
    ('Ask again later.'),
    ('Better not tell you now.'),
    ('Cannot predict now.'),
    ('Concentrate and ask again.'),

    ('Don''t count on it.'),
    ('My reply is no.'),
    ('My sources say no.'),
    ('Outlook not so good.'),
    ('Very doubtful.')
) T(Response)

ORDER BY NEWID()

After we create our data set of static messages, we need to randomly return 1 message for every shake of the eight ball. My favorite way to return one random record is to order the data by NEWID() (creating a random order for values) and then using TOP 1 to return only the first random record:

DECLARE @Message varchar(100) = '';

WITH MagicResponses AS (
    ...<VALUES() query from above>...
)

SELECT TOP 1 @Message = Response FROM MagicResponses ORDER BY NEWID();

Table Driven Animation

While I never have used this technique for animating an image before, I have used a control table to drive what data should get processed in an ETL.

In today's case, instead of saving the values of what data was last manipulated in an SSIS package, I'll be storing what each action each frame of animation should display, as well as how much delay to put in between each frame:

CREATE TABLE dbo.AnimationControl
(
    Id int IDENTITY PRIMARY KEY,
    ActionToTake varchar(20),
    DelayToTake varchar(20),
    ActionTakenDate datetime2

);

INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeLeft','00:00:00.100');
INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeRight','00:00:00.100');
INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeLeft','00:00:00.100');
INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeRight','00:00:00.100');
INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeLeft','00:00:00.100');
INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeRight','00:00:00.100');
INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('Reveal','00:00:00.500');

WAITFOR DELAY

I wanted there to be a different delay between certain animation frames (I believe the final message reveal deserves a slightly more dramatic pause), so I'm using WAITFOR DELAY to achieve that.

WAITFOR DELAY @DelayToTake;

PRINT

The goal here is to print this ascii 8 ball shaking left and right before displaying the message. We do this using good old fashioned PRINT(). After printing a particular frame we update our control table to indicate that particular frame has been drawn.

IF @CurrentActionType = 'ShakeLeft'
BEGIN
    PRINT('
                _.a$$$$$a._
              ,$$$$$$$$$$$$$.
            ,$$$$$$$$$$$$$$$$$.
           d$$$$$$$$$$$$$$$$$$$b
          d$$$$$$$$~`"`~$$$$$$$$b
         ($$$$$$$p   _   q$$$$$$$)
         $$$$$$$$   (_)   $$$$$$$$
         $$$$$$$$   (_)   $$$$$$$$
         ($$$$$$$b       d$$$$$$$)
          q$$$$$$$$a._.a$$$$$$$$p
           q$$$$$$$$$$$$$$$$$$$p
            `$$$$$$$$$$$$$$$$$`
              `$$$$$$$$$$$$$`
                `~$$$$$$$~`
    ')
END

GO

You might be wondering why I decided to use a control table to dictate what images to animate. The trouble was that in order to get the PRINT to actually display our ascii images on screen in SSMS, the batch needed to finish submitting. So each frame we print needs to be part of its own batch.

Since we have 7 frames in our animation, we need to execute our procedure 7 times.

Alternatively we can use GO 7, but then we get that ugly batch execution completed message which I don't think there is anyway to hide:

EXEC dbo.USP_ShakeThe8Ball;
GO 7

-- OR
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO

Completely Useless? I guess not

I've always been a fan of occasionally taking a break to build things for pure fun. It's a good way to apply lesser known features to your code, stretch your creativity for solving problems, and of course push software functionality to their limits through feature abuse.

Here is the full set of code if you want to run it for yourself (note, this works on a 1920x1080 resolution monitor with SSMS at full screen...your results may vary):

CREATE OR ALTER PROCEDURE dbo.USP_ShakeThe8Ball
AS
BEGIN
    /* Hide extra output to the messages window that will ruin our animation */
    SET NOCOUNT ON;
    SET ANSI_WARNINGS OFF;

    /* Set up a table to keep track of our animation frames and insert into it */
    IF OBJECT_ID('dbo.AnimationControl') IS NULL
    BEGIN
        CREATE TABLE dbo.AnimationControl
        (
            Id int IDENTITY PRIMARY KEY,
            ActionToTake varchar(20),
            DelayToTake varchar(20),
            ActionTakenDate datetime2

        );
    END;

    INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeLeft','00:00:00.100');
    INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeRight','00:00:00.100');
    INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeLeft','00:00:00.100');
    INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeRight','00:00:00.100');
    INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeLeft','00:00:00.100');
    INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('ShakeRight','00:00:00.100');
    INSERT INTO dbo.AnimationControl (ActionToTake,DelayToTake) VALUES ('Reveal','00:00:00.500');


    DECLARE @CurrentActionId int = 1;
    DECLARE @CurrentActionType varchar(20) = 'ShakeLeft';
    DECLARE @DelayToTake varchar(20) = '00:00:00.100';

    /* If more than 1 second elapsed, clear the control table */
    DECLARE @LastRunDate datetime2;
    SELECT @LastRunDate = MAX(ActionTakenDate) FROM dbo.AnimationControl;

    IF DATEDIFF(millisecond,@LastRunDate,GETDATE()) > 1000
    BEGIN
        UPDATE dbo.AnimationControl SET ActionTakenDate = NULL;
    END

    /* Which action/frame are we currently on? */

    SELECT @CurrentActionId = MIN(Id) FROM dbo.AnimationControl WHERE ActionTakenDate IS NULL;
    SELECT @CurrentActionType = ActionToTake,
            @DelayToTake = DelayToTake
        FROM dbo.AnimationControl WHERE Id = @CurrentActionId


    WAITFOR DELAY @DelayToTake;
    /* Since we can't clear the Messages window, we need to fill it with
    blank space between animation frames to achieve the desired effect */


    PRINT('




        ');


    IF @CurrentActionType = 'ShakeLeft'
    BEGIN

        PRINT('
                  _.a$$$$$a._
                 ,$$$$$$$$$$$$$.
               ,$$$$$$$$$$$$$$$$$.
              d$$$$$$$$$$$$$$$$$$$b
             d$$$$$$$$~`"`~$$$$$$$$b
            ($$$$$$$p   _   q$$$$$$$)
            $$$$$$$$   (_)   $$$$$$$$
            $$$$$$$$   (_)   $$$$$$$$
            ($$$$$$$b       d$$$$$$$)
             q$$$$$$$$a._.a$$$$$$$$p
              q$$$$$$$$$$$$$$$$$$$p
               `$$$$$$$$$$$$$$$$$`
                 `$$$$$$$$$$$$$`
                   `~$$$$$$$~`
        ')

    END

    If @CurrentActionType = 'ShakeRight'

    BEGIN

        PRINT('
                      _.a$$$$$a._
                     ,$$$$$$$$$$$$$.
                   ,$$$$$$$$$$$$$$$$$.
                  d$$$$$$$$$$$$$$$$$$$b
                 d$$$$$$$$~`"`~$$$$$$$$b
                ($$$$$$$p   _   q$$$$$$$)
                $$$$$$$$   (_)   $$$$$$$$
                $$$$$$$$   (_)   $$$$$$$$
                ($$$$$$$b       d$$$$$$$)
                 q$$$$$$$$a._.a$$$$$$$$p
                  q$$$$$$$$$$$$$$$$$$$p
                   `$$$$$$$$$$$$$$$$$`
                     `$$$$$$$$$$$$$`
                       `~$$$$$$$~` ')

    END

    IF @CurrentActionType = 'Reveal'
    BEGIN

        DECLARE @Message varchar(100) = '';

        WITH MagicResponses AS (
        SELECT * FROM
        (VALUES
            ('It is certain.'),
            ('It is decidedly so.'),
            ('Without a doubt.'),
            ('Yes - definitely.'),
            ('You may rely on it.'),
            ('As I see it, yes.'),
            ('Most likely.'),
            ('Outlook good.'),
            ('Yes.'),
            ('Signs point to yes.'),

            ('Reply hazy, try again.'),
            ('Ask again later.'),
            ('Better not tell you now.'),
            ('Cannot predict now.'),
            ('Concentrate and ask again.'),

            ('Don''t count on it.'),
            ('My reply is no.'),
            ('My sources say no.'),
            ('Outlook not so good.'),
            ('Very doubtful.')
        ) T(Response)
        )

        SELECT TOP 1 @Message = Response FROM MagicResponses ORDER BY NEWID();

        BEGIN

        PRINT('
                      _.a$$$$$a._
                     ,$$$$$$$$$$$$$.
                   ,$$$$$$$$$$$$$$$$$.
                  d$$$$$$$$$$$$$$$$$$$b
                 d$$$$$$$$~`"`~$$$$$$$$b
                ($$$$$$$p   _   q$$$$$$$)
                $$$$$$$$   (_)   $$$$$$$$           ' + @Message + '
                $$$$$$$$   (_)   $$$$$$$$
                ($$$$$$$b       d$$$$$$$)
                 q$$$$$$$$a._.a$$$$$$$$p
                  q$$$$$$$$$$$$$$$$$$$p
                   `$$$$$$$$$$$$$$$$$`
                     `$$$$$$$$$$$$$`
                       `~$$$$$$$~` ')

        END
    END

        PRINT('




        ');

    UPDATE dbo.AnimationControl SET ActionTakenDate = GETDATE() WHERE Id = @CurrentActionId;

END;
GO



/*
CTRL+T first to show Results as Text

Then highlight and execute the following:

EXEC dbo.USP_ShakeThe8Ball;
GO 7

-- OR
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO
EXEC dbo.USP_ShakeThe8Ball;
GO

*/

Temporary Staging Tables

Watch this week's video on YouTube

SQL Server Spool operators are a mixed bag. On one hand, they can negatively impact performance when writing data to disk in tempdb. On the other hand, they allow filtered and transformed result sets to be temporarily staged, making it easier for that data to be reused again during that query execution.

The problem with the latter scenario is that SQL Server doesn't always decide to use a spool; often it's happy to re-read (and re-process) the same data repeatedly. When this happens, one option you have is to explicitly create your own temporary staging table that will help SQL Server cache data it needs to reuse.

This post is a continuation of my series to document ways of refactoring queries for improved performance. I'll be using the StackOverflow 2014 data dump for these examples if you want to play along at home.

No spools

Let's start by looking at the following query:

WITH January2010Badges AS (
    SELECT
        UserId,
        Name,
        Date
    FROM
        dbo.Badges
    WHERE
        Date >= '2010-01-01'
        AND Date <= '2010-02-01'
), Next10PopularQuestions AS (
    SELECT TOP 10 * FROM (SELECT UserId, Name, Date FROM January2010Badges WHERE Name = 'Popular Question' ORDER BY Date OFFSET 10 ROWS) t
), Next10NotableQuestions AS (
    SELECT TOP 10 * FROM (SELECT UserId, Name, Date FROM January2010Badges WHERE Name = 'Notable Question' ORDER BY Date OFFSET 10 ROWS) t
), Next10StellarQuestions AS (
    SELECT TOP 10 * FROM (SELECT UserId, Name, Date FROM January2010Badges WHERE Name = 'Stellar Question' ORDER BY Date OFFSET 10 ROWS) t
)
SELECT UserId, Name FROM Next10PopularQuestions
UNION ALL
SELECT UserId, Name FROM Next10NotableQuestions
UNION ALL
SELECT UserId, Name FROM Next10StellarQuestions

Note: This is not necessarily the most efficient way to write this query, but it makes for a good demo.

This query is returning offset results for different badges from one month of data in the dbo.Badges table. While the query is using a CTE to make the logic easy to understand (i.e. filter the data to just January 2010 results and then calculate our offsets based on those results), SQL Server isn't actually saving the results of our January2010Badges expression in tempdb to get reused. If we view the execution plan, we'll see it reading from our dbo.Badges clustered index three times:

2019-05-06-18-30-12

Table 'Badges'. Scan count 27, logical reads 151137, ...

That means every time SQL Server needs to run our offset logic in each "Next10..." expression, it needs to rescan the entire clustered index to first filter on the Date column and then the Name column. This results in about 150,000 logical reads.

Divide and Conquer

One potential solution would be to add a nonclustered index that would allow SQL Server to avoid scanning the entire clustered index three times. But since this series is about improving performance without adding permanent indexes (since sometimes you are stuck in scenarios where you can't easily add or modify an index), we'll look at mimicking a spool operation ourselves.

We'll use a temporary table to stage our filtered January 2010 results so SQL Server doesn't have to scan the clustered index each time it needs to perform logic on that subset of data. For years I've referred to this technique as "temporary staging tables" or "faking spools", but at a recent SQL Saturday Jeff Moden told me he refers to it as "Divide and Conquer". I think that's a great name, so I'll use it going forward. Thanks Jeff!

First let's divide our query so that we insert our January 2010 data into its own temporary table:

DROP TABLE IF EXISTS #January2010Badges;
CREATE TABLE #January2010Badges
(
    UserId int,
    Name nvarchar(40),
    Date datetime
    CONSTRAINT PK_NameDateUserId PRIMARY KEY CLUSTERED (Name,Date,UserId)
);

INSERT INTO #January2010Badges
SELECT
    UserId,
    Name,
    Date
FROM
    dbo.Badges
WHERE
    Date >= '2010-01-01'
    AND Date <= '2010-02-01';

You'll notice I added a clustered primary key which will index the data in an order that will make filtering easier.

Next, we conquer by changing the rest of our query to read from our newly created temp table:

WITH Next10PopularQuestions AS (
    SELECT TOP 10 * FROM (SELECT UserId, Name, Date FROM #January2010Badges WHERE Name = 'Popular Question' ORDER BY Date OFFSET 10 ROWS) t
), Next10NotableQuestions AS (
    SELECT TOP 10 * FROM (SELECT UserId, Name, Date FROM #January2010Badges WHERE Name = 'Notable Question' ORDER BY Date OFFSET 10 ROWS) t
), Next10StellarQuestions AS (
    SELECT TOP 10 * FROM (SELECT UserId, Name, Date FROM #January2010Badges WHERE Name = 'Stellar Question' ORDER BY Date OFFSET 10 ROWS) t
)
SELECT UserId, Name FROM Next10PopularQuestions
UNION ALL
SELECT UserId, Name FROM Next10NotableQuestions
UNION ALL
SELECT UserId, Name FROM Next10StellarQuestions

Running this all together, we get the following plans and logical read counts:

2019-05-06-18-35-56

Table 'Badges'. Scan count 9, logical reads 50379, ...

(42317 rows affected)

(20 rows affected)
Table '#January2010Badges______________________________00000000003B'. Scan count 3, logical reads 12, ...

In this version of the query, SQL Server scans the clustered index a single time and saves that data to a temporary table. In the subsequent SELECTs, it seeks from this much smaller temporary table instead of going back to the clustered index, reducing the total amount of reads to 50379 + 12 = 50392: about a third of what the original query was doing.

Temporary Staged Data

At the end of day, you can hope that SQL Server creates a spool to temporarily stage or data, or you can be explicit about it and do it yourself. Either option is going to increase usage on your tempdb database, but at least by defining the temporary table yourself you can customize and index it to achieve maximum reuse and performance for your queries.

It's important to note that this is not a technique you want to abuse: writing and reading too much data from tempdb can cause contention problems that can make you worse off than having allowed SQL Server to scan your clustered index three times. However, when implemented sparingly and for good reasons, this technique can greatly improve the performance of certain queries.
